Name : Spiral classifier
Model : FG series Spiral classifier
Spiral diameter (mm) : 300-3000
Material : Channel steel
Spiral rotation speed (r/min) : 3.2-30
Trough length (mm< : 2
Usage : Metal ore-dressing
Dimensions(mm< : 2
Machine Weight (t) : 0.7-84.8
Application : Energy,Mining
Type : Ore Dressing Equipment
Warranty : 12 months
Mining Machine Spiral Classifier Ore Dressing Equipment Spiral Classifier
1. Introduction of spiral classifier (Spiral classifier) Ore Dressing Equipment:
Classifier is an important beneficiation equipment in mineral processing, commonly used is mainly spiral classifier. Classification machine is widely used in concentrator and ball mill with closed circuit cycle process separation of ore sand, or used in gravity concentrator to classify ore sand and fine mud, and metal processing process of pulp particle size classification, and washing operations in desliming, dehydration and other operations. The machine has the characteristics of simple structure, reliable operation and convenient operation.
2. Classifier classification of Ore Dressing Equipment:
Classifiers are mainly divided into high weir single spiral classifier, double spiral classifier, sunken single spiral classifier, double spiral classifier.
3. Spiral classifier of Ore Dressing Equipment structure
The base of the machine is made of channel steel, the body is made of steel plate welding. The water inlet head and shaft head of spiral shaft are made of cast iron, which are wear-resistant and durable.
4. Working principle of Screw classifier spiral classifier
Spiral classifier with the help of the specific gravity of solid particles, so the principle of precipitation in the liquid at different speeds, a mechanical classification equipment. The material in the mill is lower than filtration, and then the coarse material is screwed into the mill feed port by using spiral pieces, and the filtered fine material is discharged from the overflow pipe.
5. Product parameters of Screw classifier spiral classifier
Model | Spiral diameter (mm) | Spiral rotation speed (r/min) | Trough length (mm<=) | Motor power(kw<=) | Dimensions(mm<=) | Machine Weight (t) | |||
For driving | For lifting | Length | Width | Height | <= | ||||
FG-3 | 300 | 12-30 | 3000 | 1.1 | ---- | 3850 | 490 | 1140 | 0.7 |
FG-5 | 500 | 8-12.5 | 4500 | 1.1 | ---- | 5430 | 680 | 1480 | 1.9 |
FG-7 | 750 | 6-10 | 5500 | 3 | ---- | 6720 | 980 | 1820 | 3.1 |
FG-10 | 1000 | 5-8 | 6500 | 5.5 | ---- | 7590 | 1240 | 2380 | 4.9 |
FC-10 | 8400 | 7.5 | 9600 | 1240 | 2680 | 6.2 | |||
FG-12 | 1200 | 4-6 | 6500 | 7.5 | 2.2 | 8180 | 1570 | 3110 | 8.5 |
FC-12 | 8400 | 7.5 | 2.2 | 10370 | 1540 | 3920 | 11.0 | ||
2FG-12 | 6500 | 15 | 4.4 | 8230 | 2790 | 3110 | 15.8 | ||
2Fc-12 | 8400 | 15 | 4.4 | 10370 | 2790 | 3920 | 17.6 | ||
FG-15 | 1500 | 4-6 | 8300 | 7.5 | 2.2 | 10410 | 1880 | 4080 | 12.5 |
FC-15 | 10500 | 7.5 | 2.2 | 12670 | 1820 | 4890 | 16.8 | ||
2FG-15 | 8300 | 15 | 4.4 | 10410 | 3390 | 4080 | 22.1 | ||
2FC-15 | 10500 | 15 | 4.4 | 12670 | 3370 | 4890 | 30.7 | ||
FG-20 | 2000 | 3.6-5.5 | 8400 | 11-15 | 3 | 10790 | 2530 | 4490 | 20.5 |
FC-20 | 12900 | 11-15 | 3 | 15610 | 2530 | 5340 | 28.5 | ||
2FG-20 | 8400 | 22-30 | 6 | 11000 | 4600 | 4490 | 35.5 | ||
2FC-20 | 12900 | 22-30 | 6 | 15760 | 4600 | 5640 | 48.7 | ||
FG-24 | 2400 | 3.67 | 9130 | 15 | 3 | 11650 | 2910 | 4970 | 26.8 |
FC-24 | 14130 | 18.5 | 4 | 16580 | 2930 | 7190 | 41.0 | ||
2FG-24 | 9130 | 30 | 6 | 12710 | 5430 | 5690 | 45.8 | ||
2FC-24 | 14130 | 37 | 8 | 17710 | 5430 | 8000 | 67.9 | ||
2FG-30 | 3000 | 3.2 | 12500 | 40 | 8 | 16020 | 6640 | 6350 | 73.0 |
2FC-30 | 14300 | --- | --- | 17091 | --- | 8680 | 84.8 |
![]() |

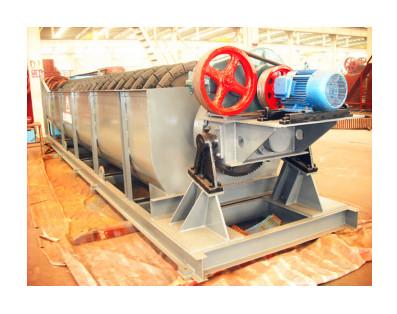

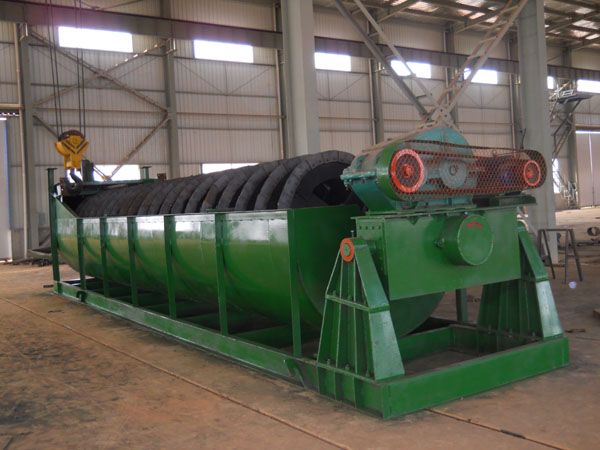

Mining Machine Ore Dressing Equipment Spiral Classifier Images |
